3 Side Seal Bags Explained: Features, Benefits, and Applications

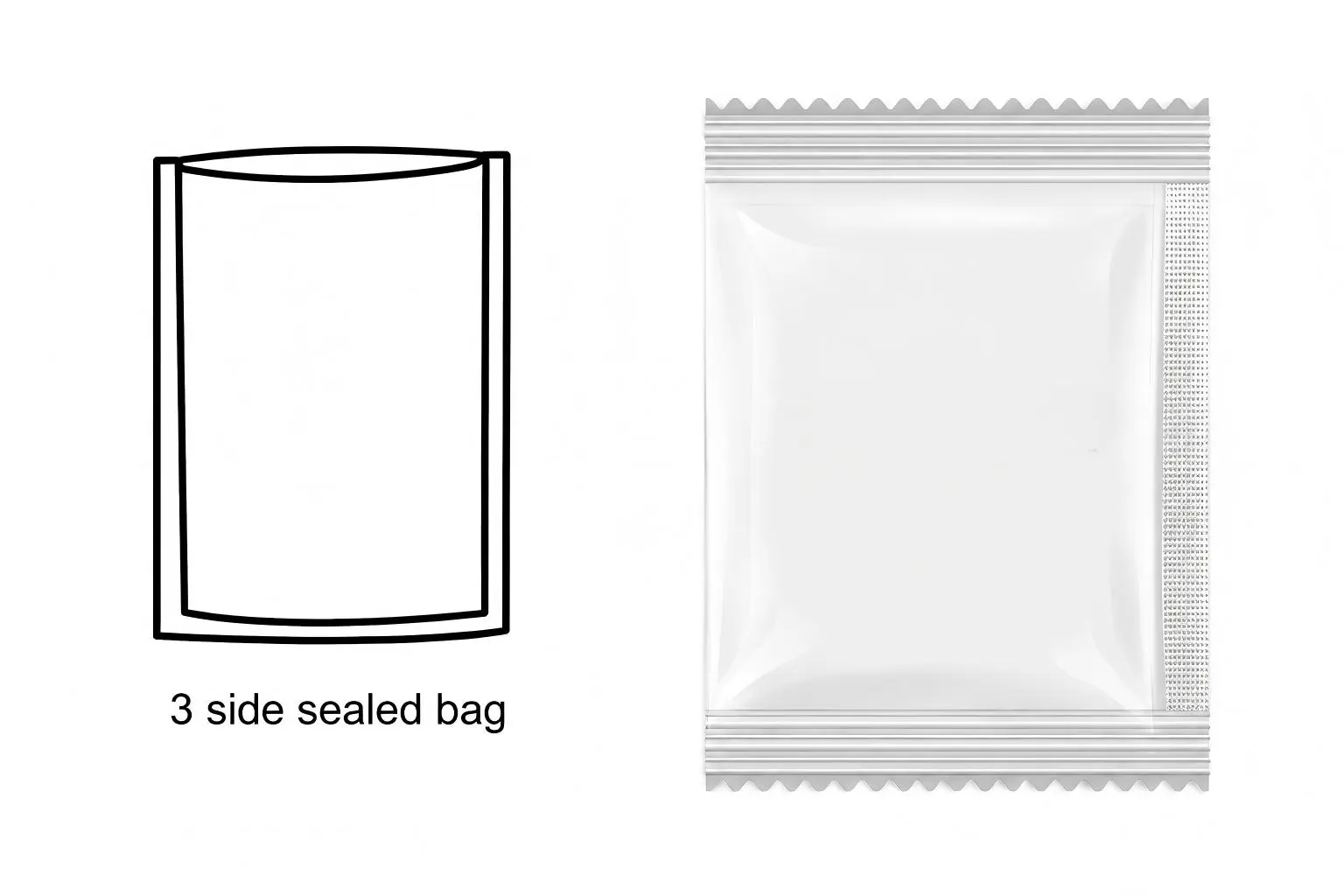

A 3 side seal bag is simply a flat pouch sealed on three sides, with the fourth side left open for product filling. It’s an efficient, cost-effective format that delivers reliable performance across a broad range of applications.

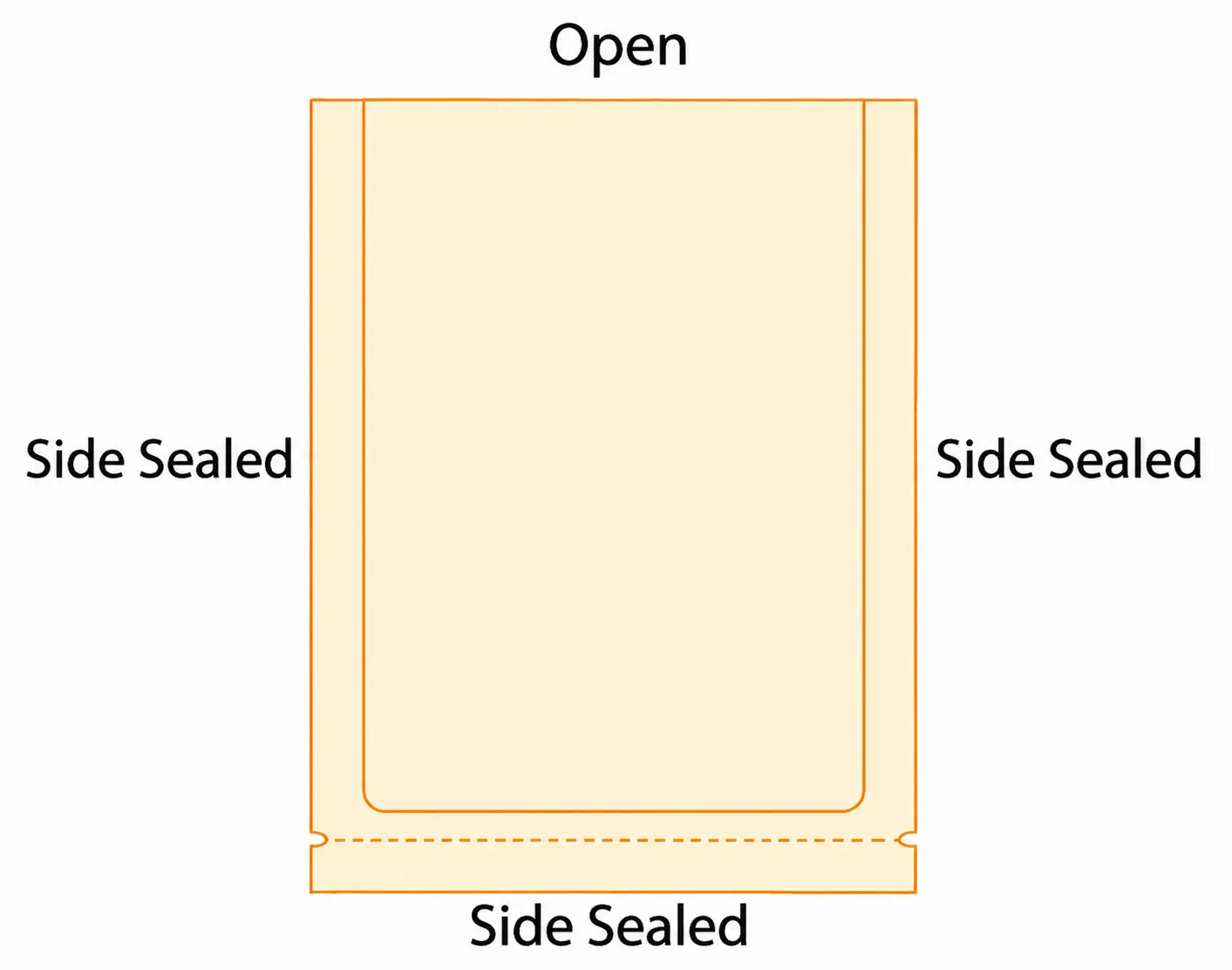

The “three sides” typically refer to the left, right, and bottom edges, with the top serving as the filling and final sealing point . However, this can be adapted based on specific product requirements, with some designs sealing the top and bottom along with one side instead. This structural flexibility allows brands to customize their packaging approach while maintaining the core benefits of the format.

As a flexible food packaging manufacturer, we understand that choosing the right packaging format is a critical decision that affects everything from production efficiency to brand perception. The 3 side seal bag has earned its reputation as a reliable, cost-effective workhorse that delivers consistent results across a remarkably wide range of applications.

Top 6 Benefits of 3 Side Seal Bags

Cost-Effective Production

The 3 side seal bag is inherently economical. It uses less material compared to more complex formats like stand-up pouches with bottom gussets, which require additional film and more intricate sealing processes . The simpler construction translates directly into lower per-unit costs, especially at scale. For brands looking to optimize packaging budgets without compromising quality, the 3 side seal bag offers exceptional value.

Efficient Storage and Shipping

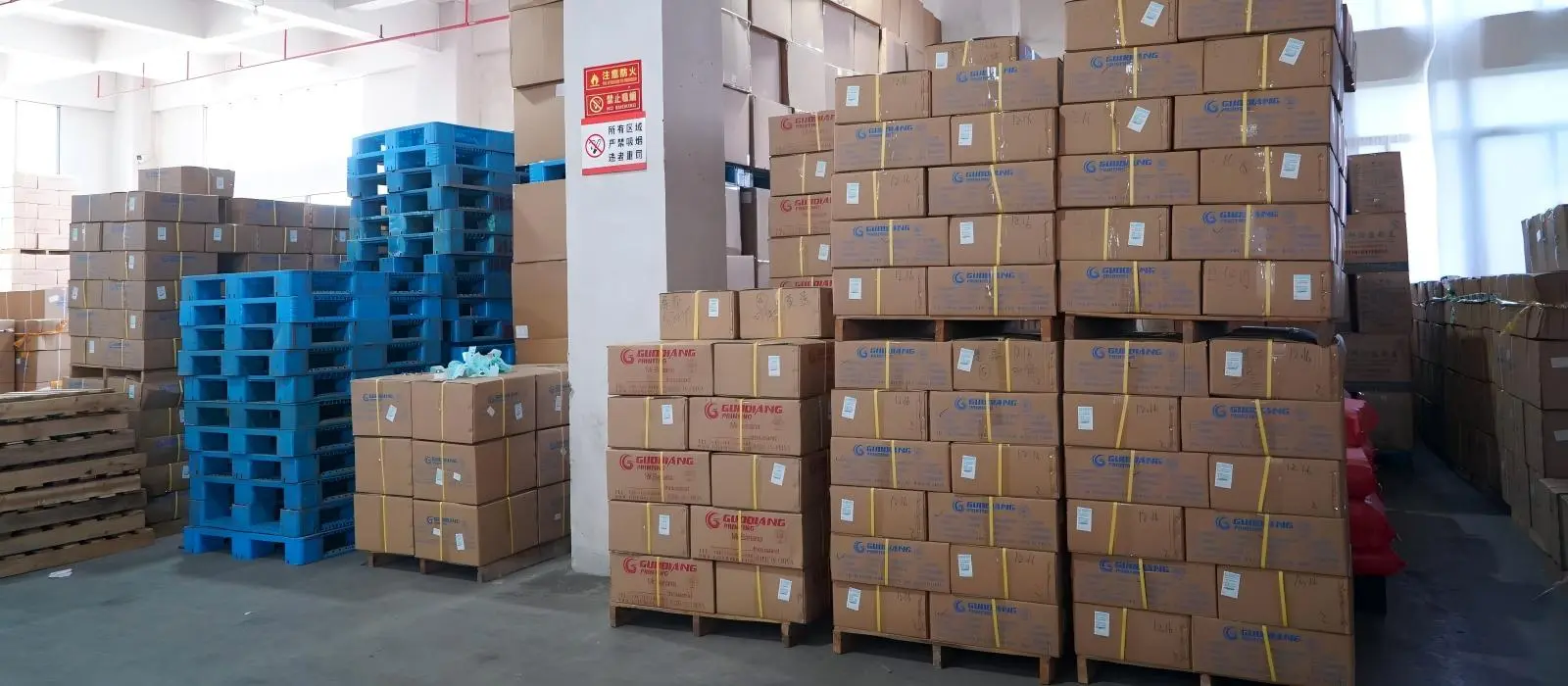

Because these pouches lie completely flat when empty, they are exceptionally space-efficient. Brands can store significantly more units in the same warehouse space, and shipping costs are reduced since more pouches fit into each carton . This logistical advantage is particularly valuable for businesses with high-volume production or those shipping packaging to co-packers or filling facilities.

Generous Printable Surface

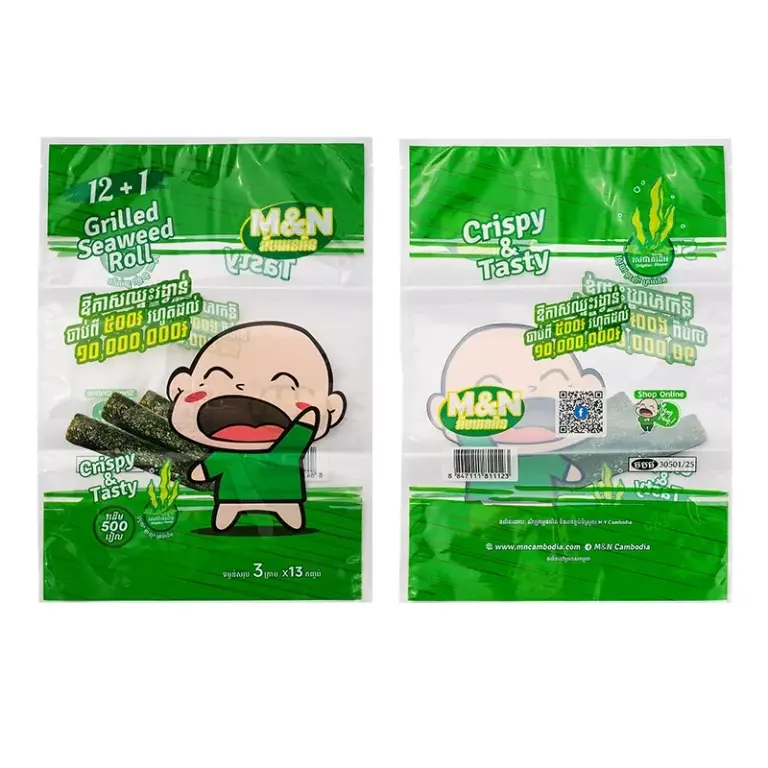

One of the most appealing features of the 3 side seal bag is its large, uninterrupted front and back panels. This provides a generous canvas for branding, product information, and eye-catching graphics . In a retail environment where visual appeal is paramount, the 3 side seal bag allows your brand story to shine without awkward interruptions from gussets or complex folds.

Versatility Across Industries

From food and beverages to cosmetics, pharmaceuticals, and household goods, the 3 side seal bag adapts to virtually any product category . Whether packaging single-serving coffee, protein powder samples, pet treats, or face mask sachets, this format delivers reliable protection and a professional appearance . Its versatility makes it a go-to solution for brands with diverse product lines.

Compatibility with High-Speed Filling

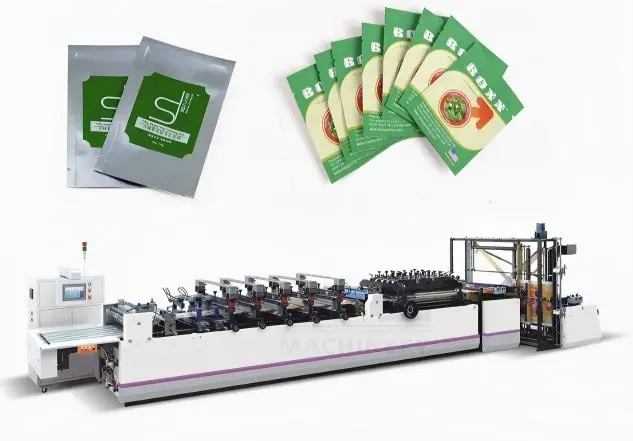

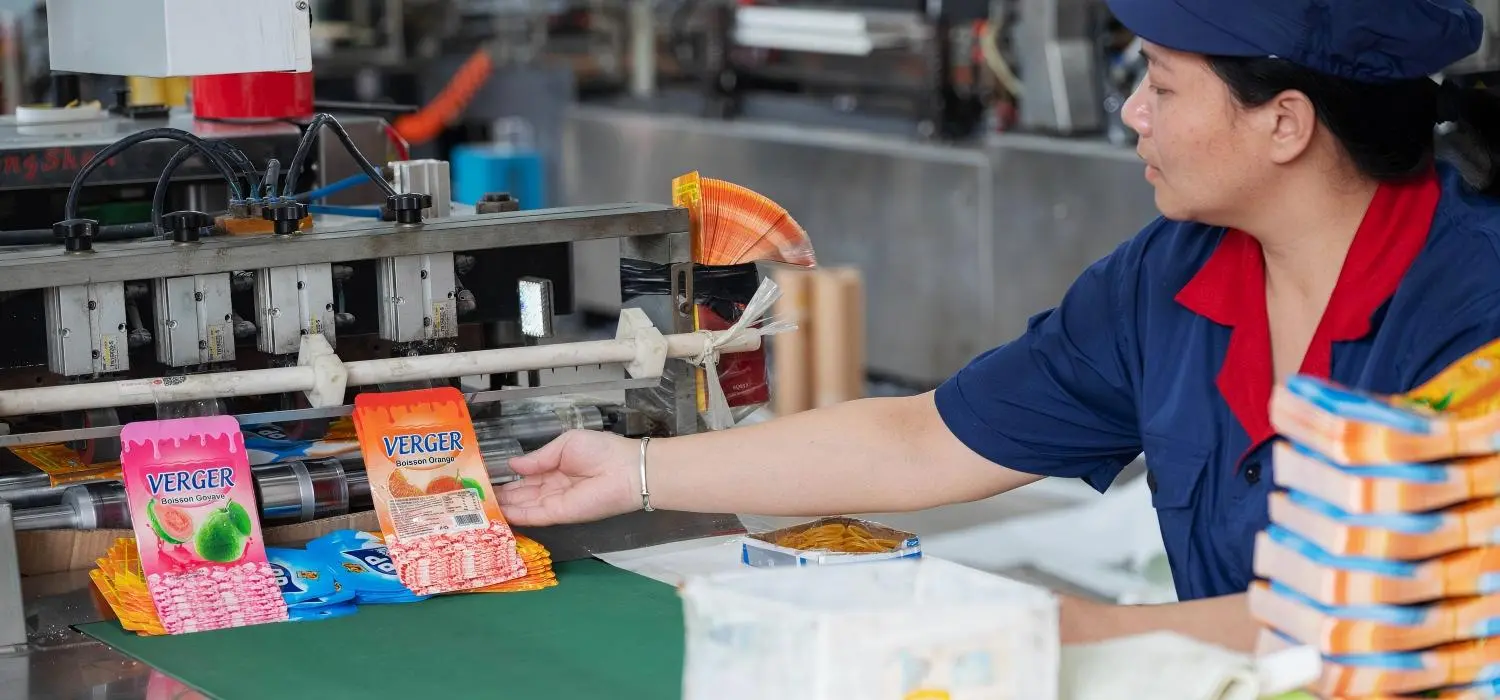

Designed with efficiency in mind, 3 side seal bags are fully compatible with high-speed automated filling and sealing lines. The consistent shape and dimensions allow for smooth, rapid processing, helping manufacturers meet tight deadlines and maintain high throughput. This makes them an ideal choice for both startup brands scaling up and established players optimizing production.

Excellent Product Protection

Despite its simple design, the 3 side seal bag offers robust protection. When constructed with appropriate barrier materials like aluminum foil or metallized films, it creates a formidable shield against moisture, oxygen, light, and contaminants . This extends product shelf life and preserves freshness, making it particularly suitable for foods, spices, coffee, and other perishable goods.

Applications: Where 3 Side Seal Bags Shine

The 3 side seal bag is particularly well-suited for:

• Single-serve products – Coffee pods, tea sachets, spice samples, and individual condiment portions
• Sample packaging – Promotional samples, trial sizes, and subscription box inserts

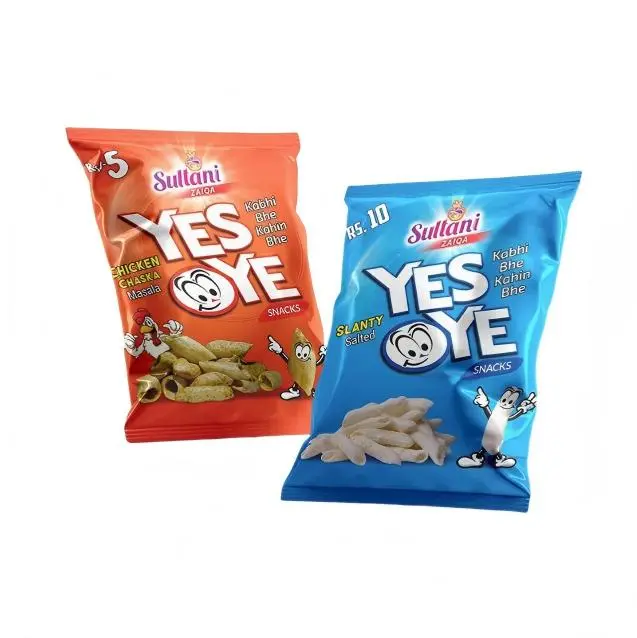

• Dry foods and powders – Protein powders, baking mixes, dried fruits, nuts, and snacks
• Pet treats and food – Single-serving or small-batch pet food packaging
• Cosmetics and personal care – Face masks, creams, lotions, and shampoo sachets

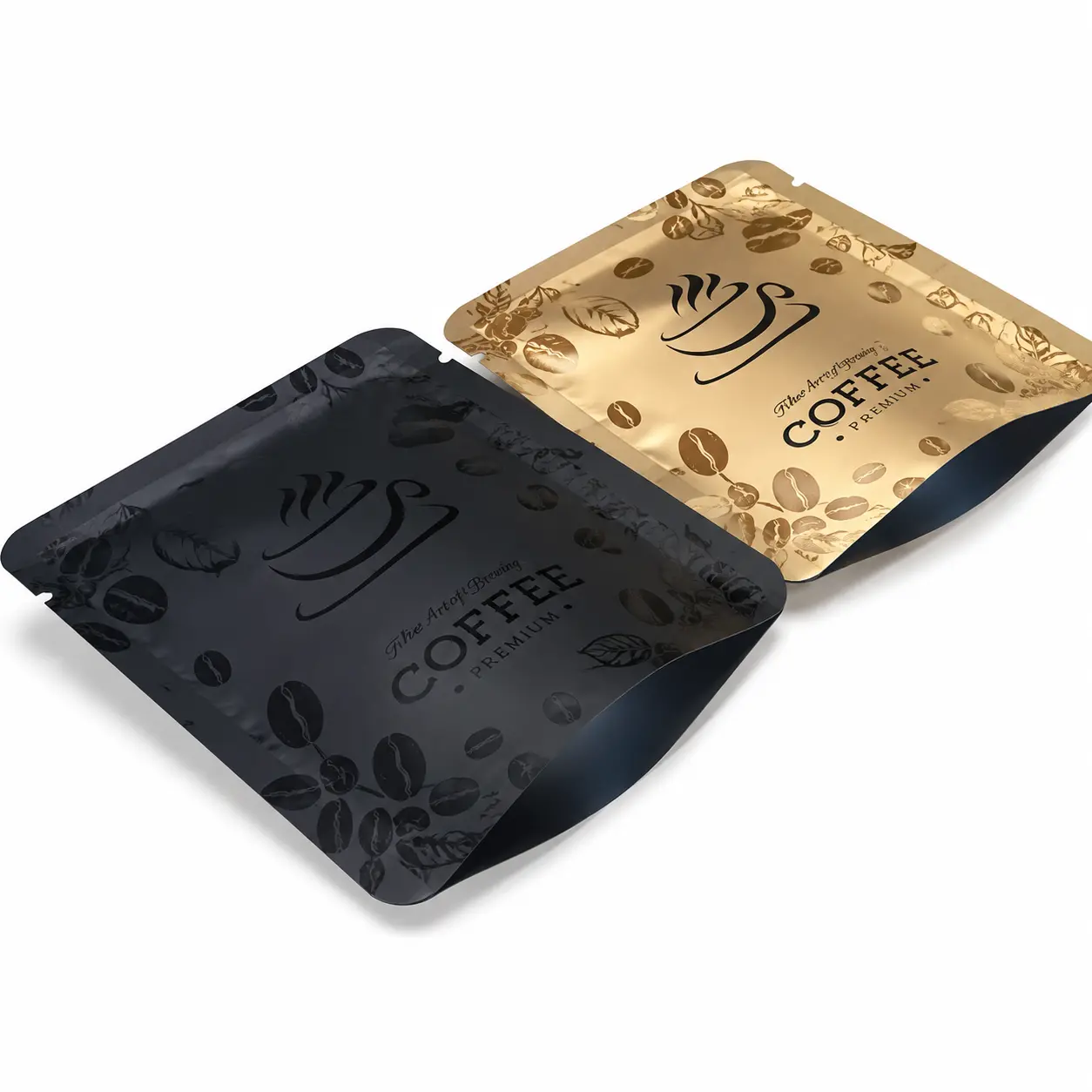

• Coffee and tea – Fresh coffee beans, ground coffee, and loose-leaf tea, often with degassing valves

Understanding the Seal Structure

The three sealed edges of a 3 side seal bag are typically formed by heat-sealing the inner layer of the laminate—most commonly PE or CPP. The standard seal width ranges from 8mm to 15mm, depending on the product weight and required seal strength.

Unlike center-seal pouches where the back seam runs vertically through the middle, the 3 side seal design places all seals on the periphery, creating an entirely flat front and back surface. This structural choice is critical for brands that prioritize unobstructed label placement and high-quality printing. The side seals also provide additional reinforcement, making the pouch more resistant to burst pressure during transport and handling.

Material Structure Combinations: A Practical Guide

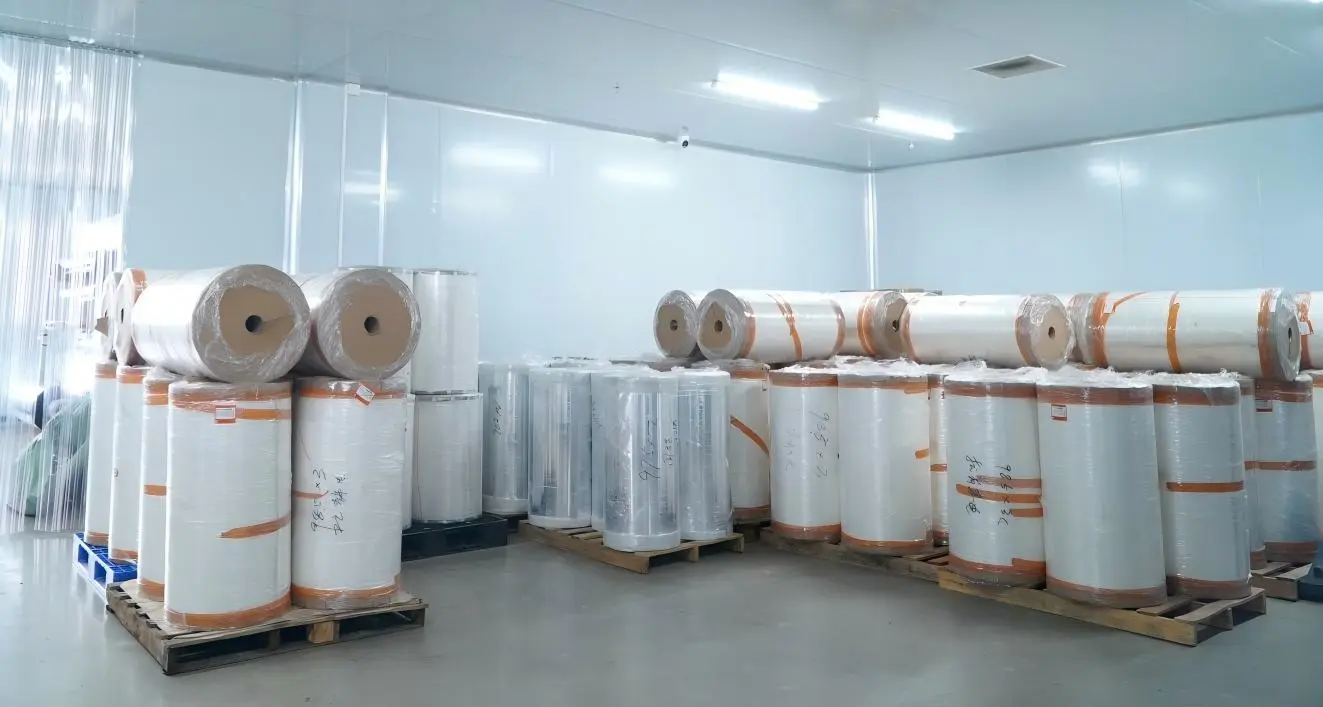

A typical 3 side seal bag uses a multi-layer laminate structure. Each layer serves a specific purpose:

• Outer Layer  – Often PET or NYLON, this layer provides printability, scratch resistance, and puncture protection.
• Barrier Layer – Aluminum foil, VMPET, or EVOH determines the barrier performance against oxygen, moisture, and light.
• Inner Sealant Layer  – Usually PE or CPP, this layer ensures heat sealability and direct food contact safety.

Total film thickness typically ranges from 60μm to 200μm. Thinner films reduce material cost and improve flexibility, but offer less rigidity and drop impact resistance. For products with high moisture or oxygen sensitivity, we recommend an aluminum foil barrier with at least 12μm thickness.

Choosing the right combination depends on your product’s specific requirements. A coffee brand needs strong oxygen and aroma barriers, while a frozen food brand prioritizes puncture resistance and low-temperature sealability. We work with each customer to match the material structure to their product profile and budget.

Customization Options for Your Brand

As a professional flexible food packaging manufacturer, we offer extensive customization for 3-side seal bags to meet your specific needs.

Materials

Choose from a wide range of laminates to achieve the right balance of barrier properties, appearance, and sustainability. Options include:

• Aluminum foil – Total barrier to oxygen, moisture, light, and odors
• Kraft paper – Natural, compostable appearance for eco-conscious brands
• Metallized films – Premium metallic look at a lower cost than foil
• Clear films – Full product visibility for retail appeal
• Recyclable mono-materials – PE-based structures designed for recyclability

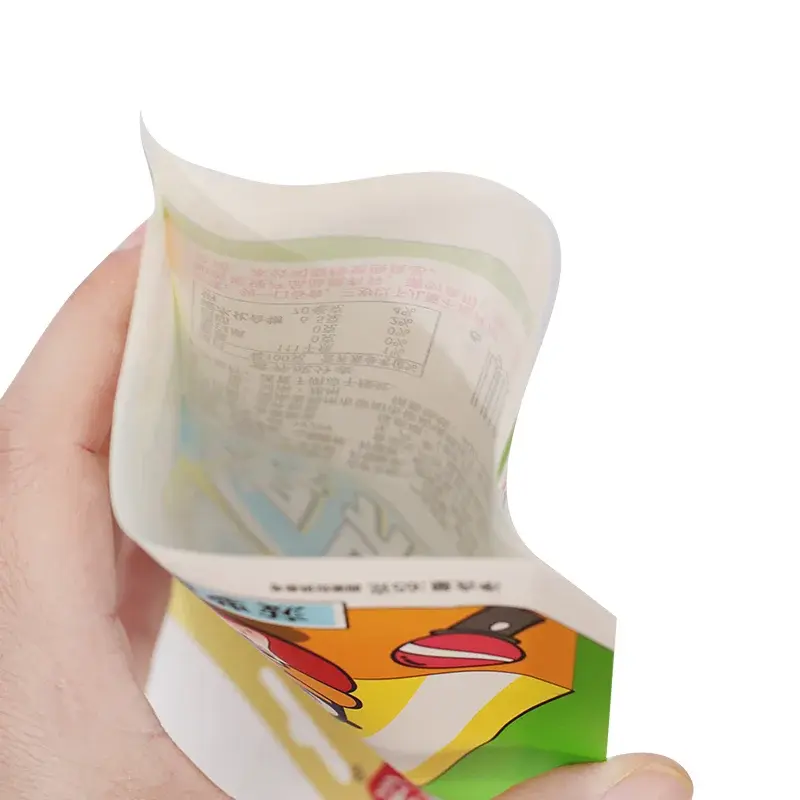

Sizes and Thickness

Bags can be manufactured in virtually any size, from small sachets holding a few grams to larger pouches for multi-serving products. The film thickness is also customizable to provide the required durability and protection for your specific product.

Add-on Features

Enhance functionality and user experience with a range of features:

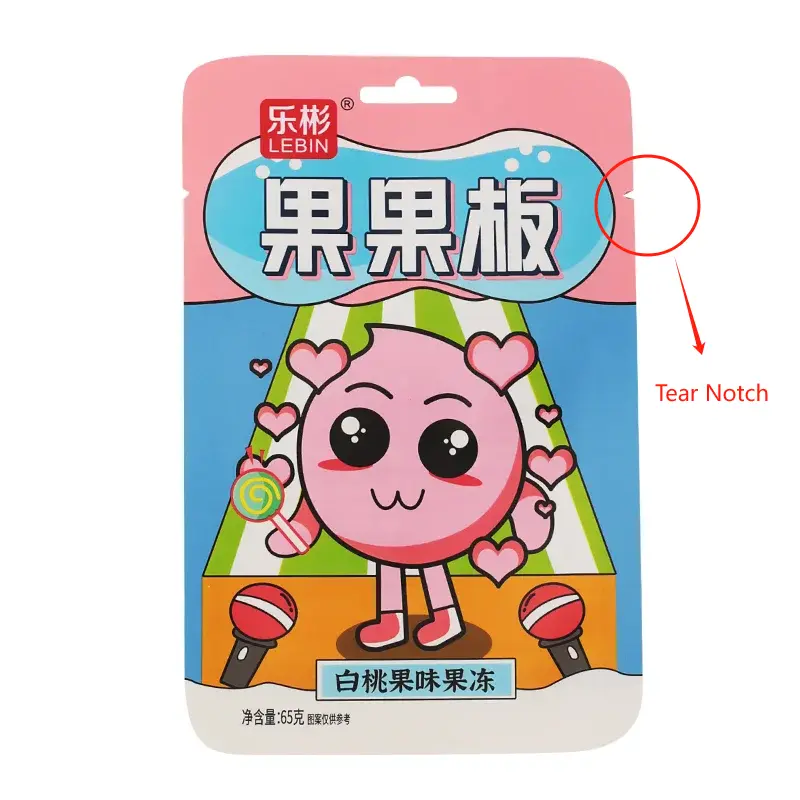

• Tear Notches – Enable easy, clean opening without scissors
• Hang Holes – Perfect for pegboard displays in retail environments
• Zippers/Reclosable Closures – Press-to-close zippers for resealability
• Windows – A transparent panel allows consumers to see the product inside
• Rounded Corners – Adds a premium feel and prevents sharp edges
• Degassing Valves – Essential for fresh coffee and other gas-emitting products
• Laser Perforation – Controlled tear propagation for easy access

Printing

High-quality rotogravure or digital printing allows for vibrant, detailed graphics with up to 10 colors. Options include matte or gloss finishes, hot stamping, and other decorative effects to elevate your brand presentation.

Gravure vs. Digital Printing: Which One to Choose?

When custom printing your 3 side seal bags, the choice between gravure and digital printing impacts both cost and lead time.

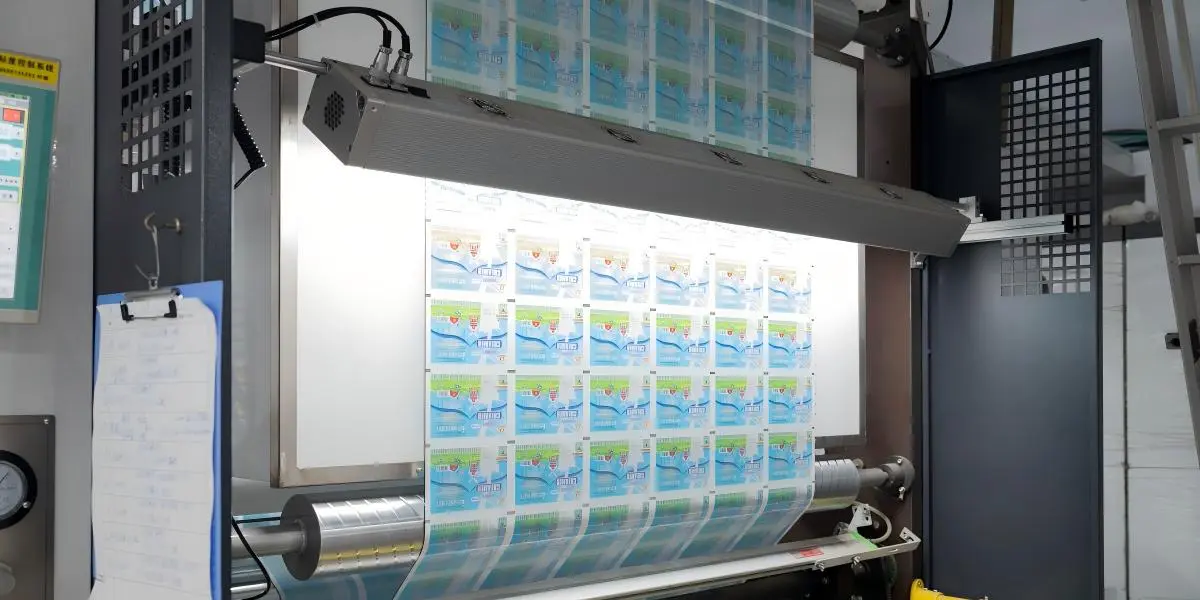

Gravure Printing delivers exceptional color vibrancy and consistency, supporting up to 10 colors. It is ideal for large-volume runs—typically above 50,000 pieces per design. The initial plate cost is higher, but the per-unit cost drops significantly with volume, making it the most economical choice for long production runs.

Digital Printing requires no plate fees and accommodates shorter runs down to 1,000 pieces. It enables faster market testing, seasonal campaigns, and SKU variations without the upfront investment. While the per-unit cost is higher than gravure at scale, digital printing offers unmatched flexibility and speed-to-market.

We help brands analyze their annual volume, design complexity, and color requirements to select the most economical and effective printing method.

Sealing Technologies: Heat Seal vs. Cold Seal

Most 3 side seal bags are sealed using heat seal technology, which applies controlled heat and pressure to melt the inner sealant layer. Heat sealing delivers strong, consistent seals at high speeds, making it the standard choice for most applications.

However, for temperature-sensitive products like chocolates, candies, or certain pharmaceuticals, cold seal (pressure-sensitive) adhesives offer an alternative. Cold seal requires no heat, preserving product integrity and preventing melt-back or sticking issues. The trade-off is that cold seal typically runs at slower speeds and costs slightly more per unit.

Our engineering team evaluates your product’s filling temperature, line speed, and sensitivity to heat to recommend the most efficient sealing method for your specific application.

Conclusion: Choose Efficiency and Reliability

The 3 side seal bag represents the perfect intersection of simplicity, efficiency, and versatility. It is a packaging solution that has proven its worth across decades and industries, adapting to new materials, printing technologies, and consumer demands . For brands looking for a reliable, cost-effective, and highly customizable packaging format, the 3 side seal bag is an enduring choice that delivers results.

As a dedicated flexible food packaging manufacturer, we are committed to helping you find the perfect packaging solution for your products. Whether you are launching a new product line or looking to optimize your existing packaging, we invite you to explore the possibilities of the 3 side seal bag. Contact us today to discuss your project and discover how we can bring your packaging vision to life.
